Precision Switching for Demanding Measurements
The Agent Expand DMM Relay features 32 galvanically isolated SPDT channels, ensuring clean signal transitions with a break-before-make control scheme. Designed to connect with the Accordion Agent via the Agent Expand I2C Module, it provides reliable switching for sensitive measurement environments.
Flexible Channel Configuration

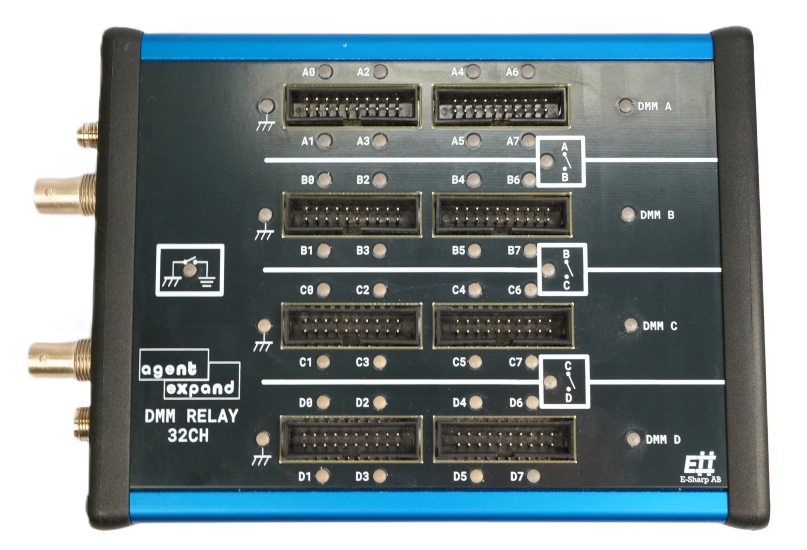

Engineers can configure the relay in 4×8, 2×16, or 1×32 layouts, depending on the test setup. This flexibility makes it suitable for both straightforward signal routing and more advanced switch matrix applications.
Trigger Integration for Synchronized Testing

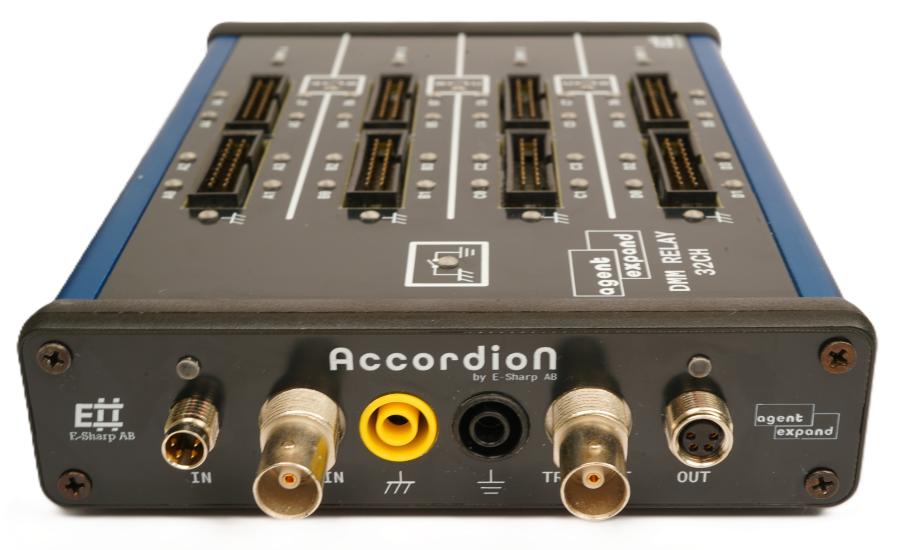

With TRIG-IN/OUT ports, the module allows instruments like DMMs to trigger measurements precisely when connections are established. This supports automated workflows and reduces manual timing errors.
Clear Visual Status
Each port includes an LED indicator, offering instant visual feedback on active channels. This simplifies monitoring and speeds up troubleshooting during live operations.
