High-Power Switching Made Simple

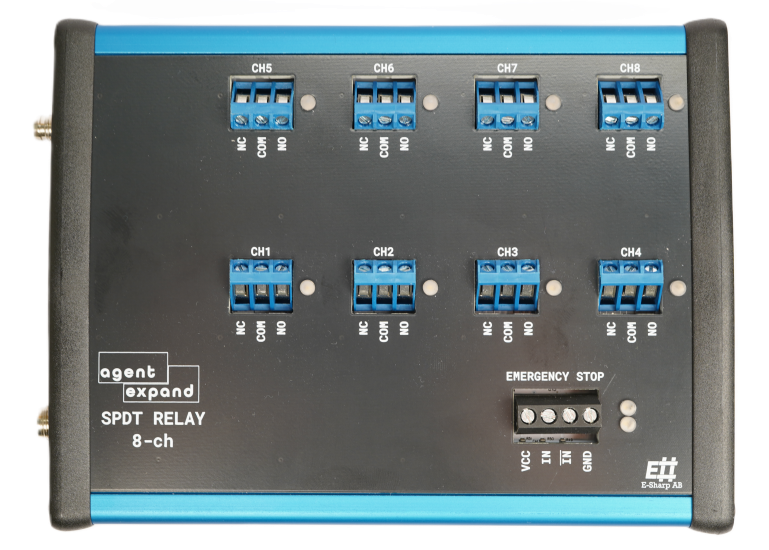

The Agent Expand SPDT Relay features 8 high-power SPDT channels, each capable of switching up to 4000VA (300VAC, 20A). It’s built to handle demanding loads such as industrial lighting, power supply switching, and large contactors with reliable performance and minimal complexity.
Instant Emergency Shutdown
An emergency stop port allows all relays to open instantly via high or low logic—no software required. This hardware-level safety feature ensures fast and dependable response in critical situations.
Effortless System Integration

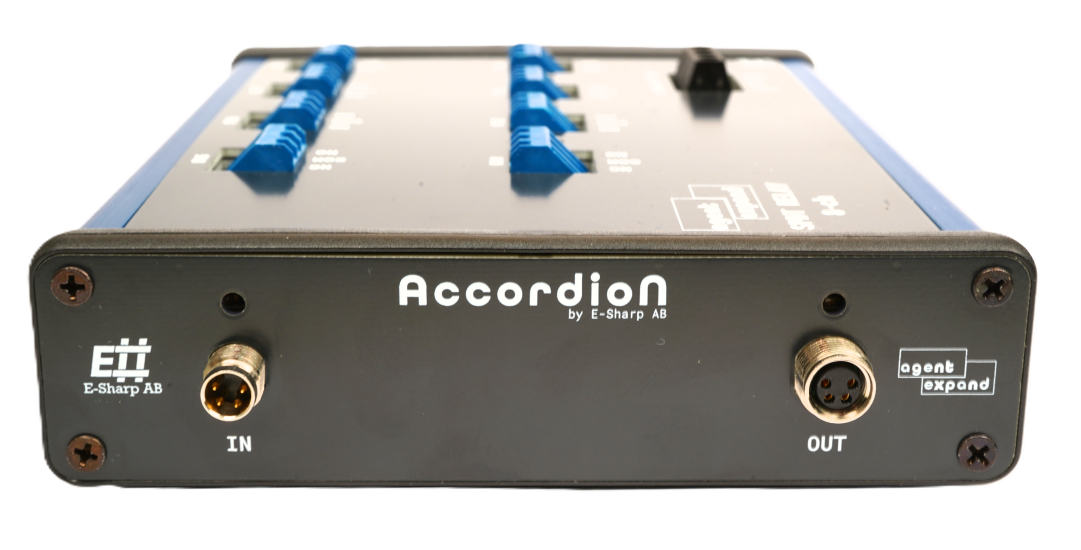

Part of the Agent Expand Range, this relay connects directly to an Accordion Agent using the Agent Expand I2C Module. It’s designed for scalable control systems where flexibility and modularity matter.
Clear Status Visibility
Each relay channel includes a LED indicator, offering immediate visual feedback for on-site diagnostics and system monitoring.
Specifications
Article data
| Article number | ESH10000109 |
| Part name | Sigcond 8 dpdt relay I2C controlled |
Physical specification
| Dimensions (W*D*H) | 125x160x31 mm |
General
| Total Channels | 8 |
| Voltage rating | 250-300 VAC |
| Resistive load | 16-20 A |
| Switching power | 4000 VA |
| Mechanical endurance | 50 000 OPS |
Charachteristics
| Contact resistance | 50 mΩ |
| Insulation resistance | 1000 MΩ |
| Ambient temperature | -30 – +85°C |
