Accordion

The Accordion test system is a modular hardware platform for electronics production test, design verification, and NPI — built around a single test node, a library of plug-in modules, and a consistent control API across Python, .NET, TestStand, LabVIEW, and REST.

Browse the full Accordion catalog here, or jump to a specific family: A2 instruments, individual modules grouped by function, Accordion software, and Accordion Expand for distributed test setups. Every product follows the same channel model, so test code written for one Accordion node runs unchanged on another.

Filter

Showing 19 products.

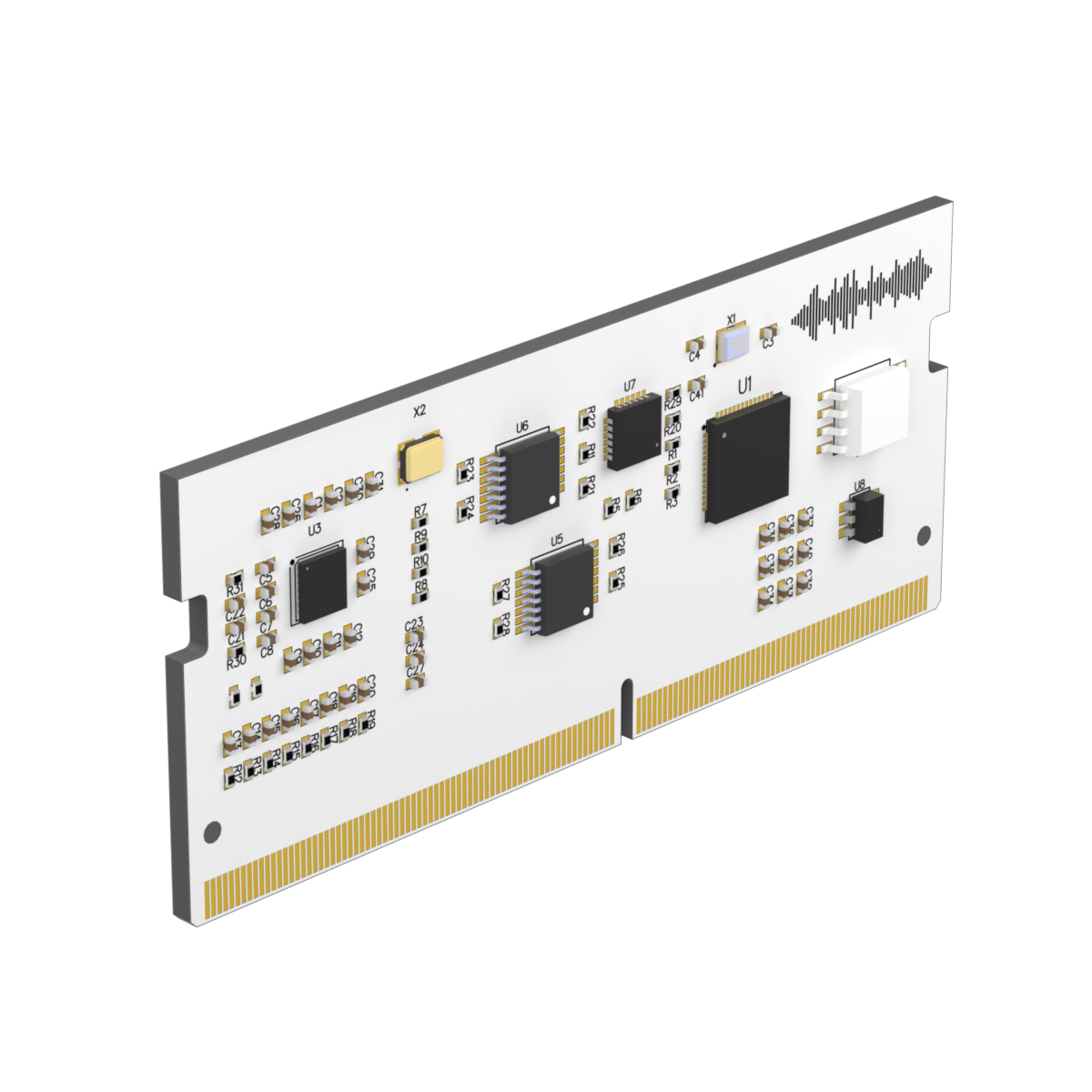

Tone Audio Module

A line-level audio source and analyzer in SO-DIMM form. Two DAC outputs, four ADC inputs, 96 kSps / 24-bit, all DSP on-module.

Tone Audio Module
Learn more

6x IDC N-TOP Breakout Module

The simplest way to wire an Accordion fixture: 96 DATA lines on six 20-pin IDC connectors, all passive, all directly mapped.

6x IDC N-TOP Breakout Module
Learn more

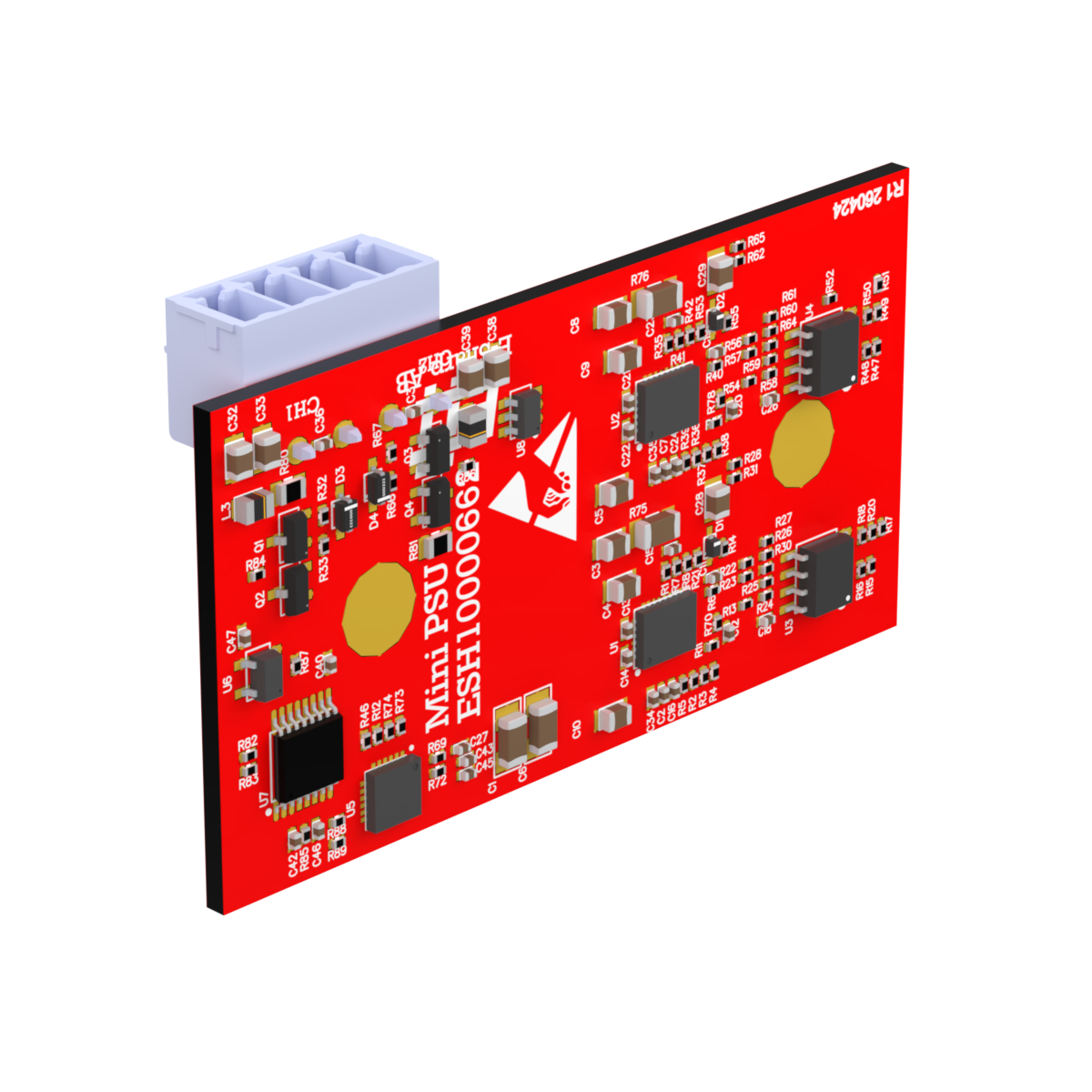

Mini-PSU

N-Top module for the Accordion test system — two buck-boost channels, 0–24 V at 1.5 A each, fully programmable over I²C.

Mini-PSU
Learn more

Battery Simulator

Programmable battery emulation — 0–10 V at 1 A bidirectional, galvanically isolated, with on-board measurement and protection.

Battery Simulator
Learn more

Precision ADC/DAC Module

Precision analog I/O for Accordion: 12 × 24-bit ADC and 8 × 16-bit DAC channels, calibrated per channel and stored on the module.

Precision ADC/DAC Module
Learn more

Communication Module

The control core of every Accordion. Two I²C channels, UART, SPI, JTAG, fan control, and synchronized analogue sampling — software-defined.

Communication Module
Learn more
bg-shape1 bg-shape2
Accordion AGENT

Scalable Data Acquisition System

http://Untitled%20Project
Learn more

Accordion A2 Build

Build your Accordion A2 from the standard module library: programmable supplies, high-density I/O, comms, audio, battery sim, and more.

Accordion A2 Build
Learn more

Accordion A2 Plus

The fully-loaded Accordion A2: 96 channels, two software-controlled rails, and bus access for everything from I²C to JTAG.

Accordion A2 Plus
Learn more

Accordion A2 Lite

The entry Accordion A2: 96 mixed-signal channels on six IDC connectors, USB-C powered, lifetime Pilot and Shell licenses.

Accordion A2 Lite
Learn more

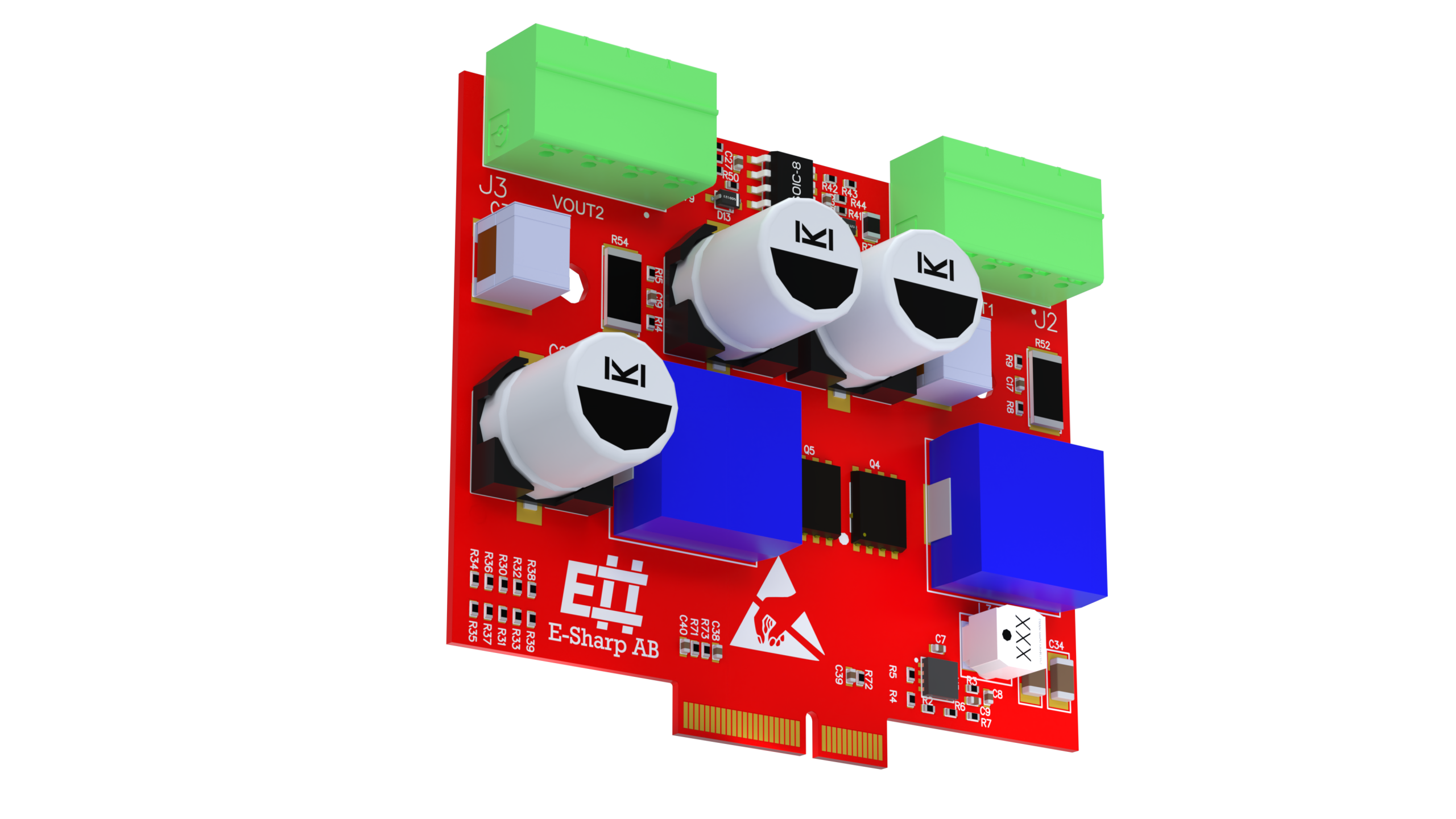

PSU M.2 Module

A programmable dual-channel PSU module for the Accordion test system. M.2 connector, PMBus control, no manual trim or calibration.

PSU M.2 Module
Learn more

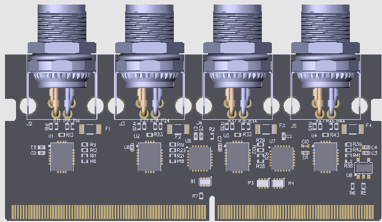

PoE M.2 Module

A PoE sourcing module that drops Class 8 power into Accordion test fixtures — with the telemetry and fault control compliance work needs.

PoE M.2 Module
Learn more

Accordion Expand I2C Module

Connect Agent Expand units to Accordion Agent with long-range I2C and power distribution. Scalable, flexible, and engineered for growth.

Accordion Expand I2C Module
Learn more

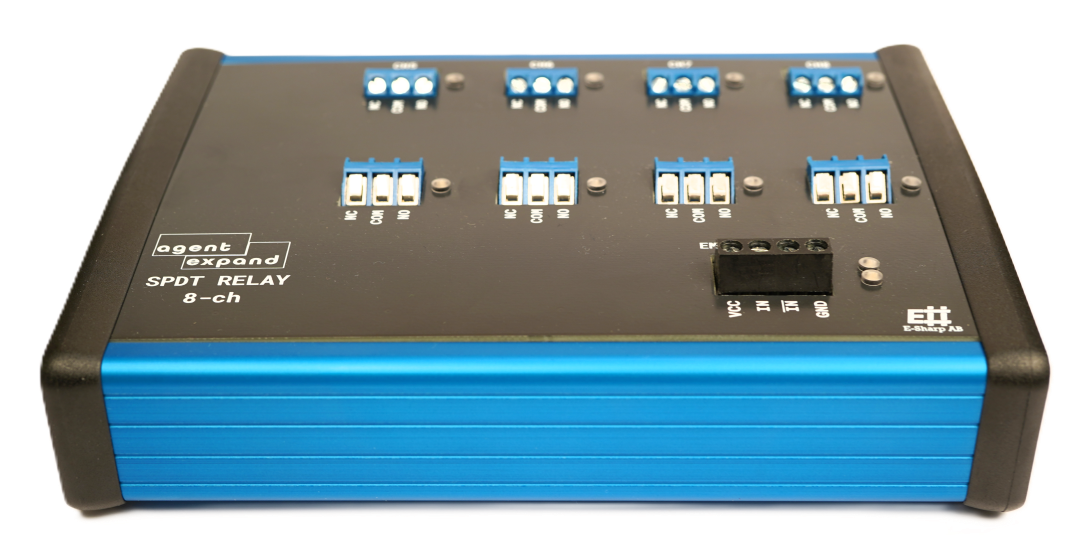

Accordion Expand SPDT Relay

8-channel SPDT relay module with emergency stop and LED indicators, ideal for high-power switching and flexible system integration.

Accordion Expand SPDT Relay
Learn more

Accordion Stationmaster

Centralised logging and configuration for test stations with full traceability, statistical insight and seamless integration into high-volume production environments.

Accordion Stationmaster
Learn more

Accordion Pilot

Pilot is the graphical interface for Accordion test systems — set up an instrument, drive channels, capture measurements, all without writing code.

Accordion Pilot
Learn more

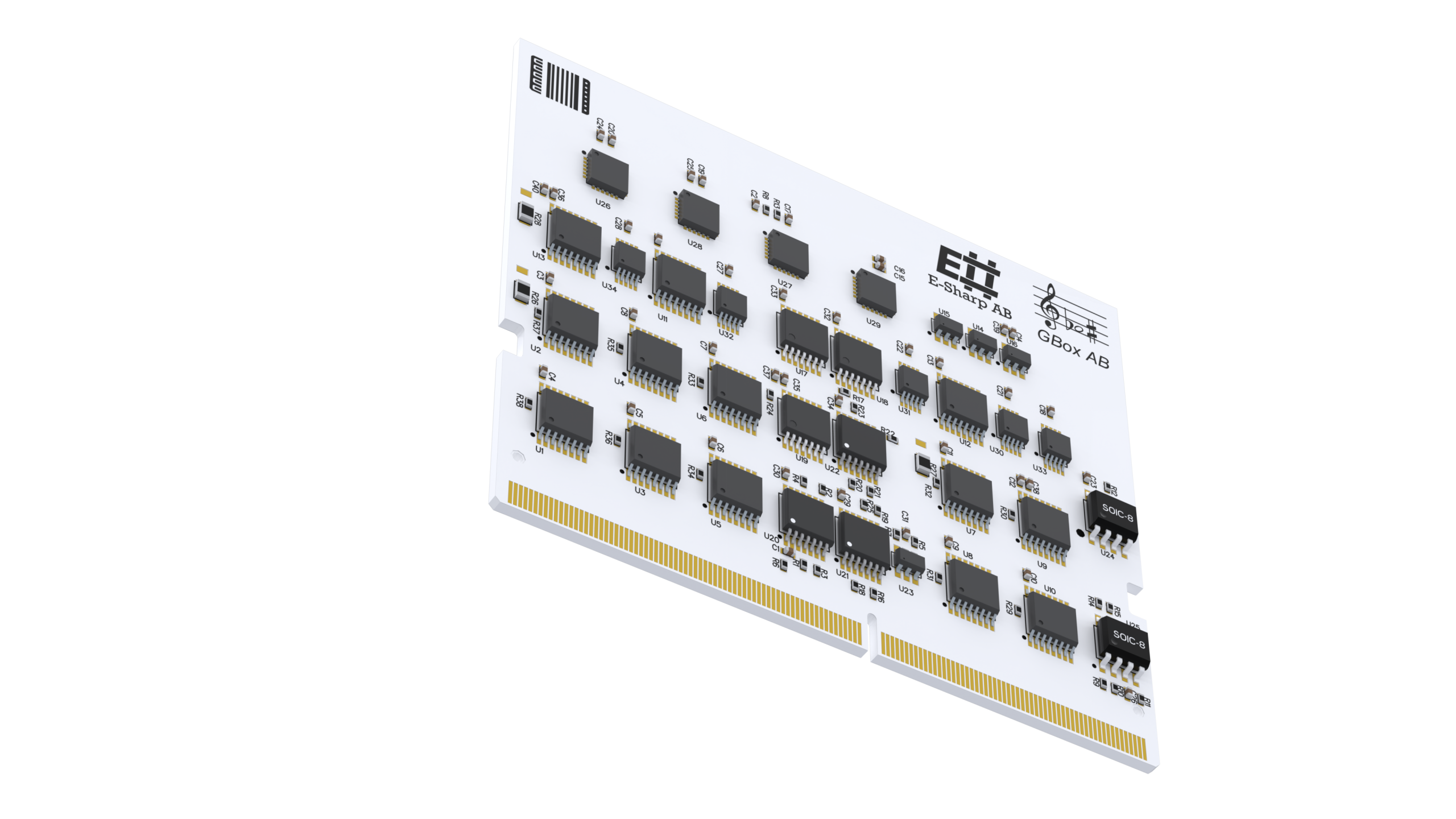

AMUX

A software-routed 80-channel analog multiplexer module — 500 MHz bandwidth, configurable as 1:80, 2:40, or ten independent 8-to-1 paths.

AMUX
Learn more

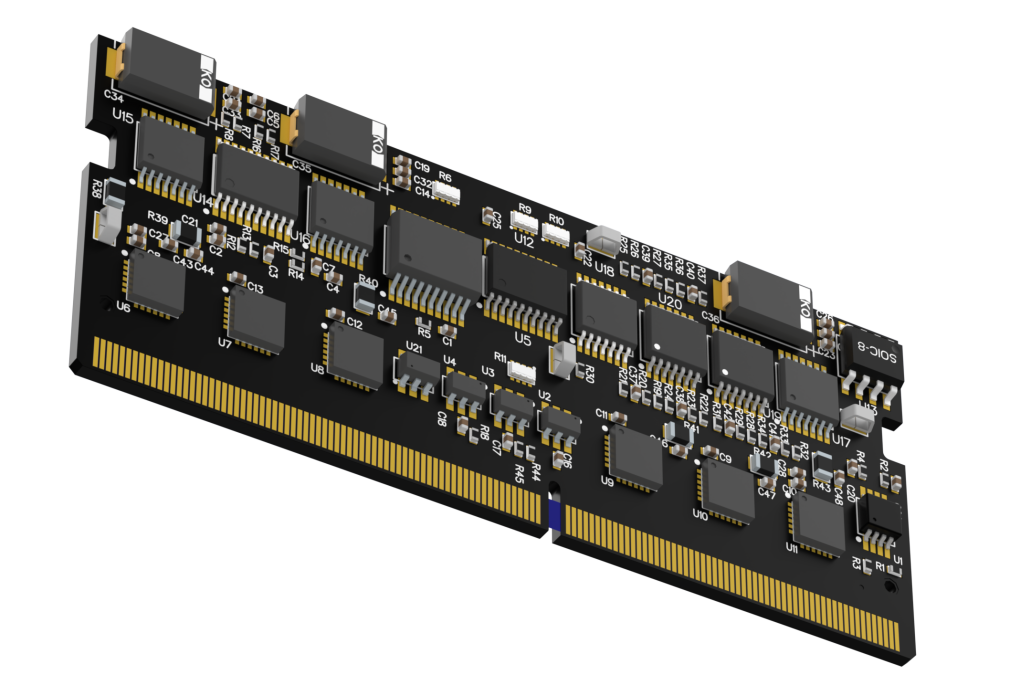

GPIO

96-channel digital I/O with per-bank voltage control, 12-bit DAC, and ±10mA drive—ideal for scalable, mixed-signal systems.

GPIO
Learn more

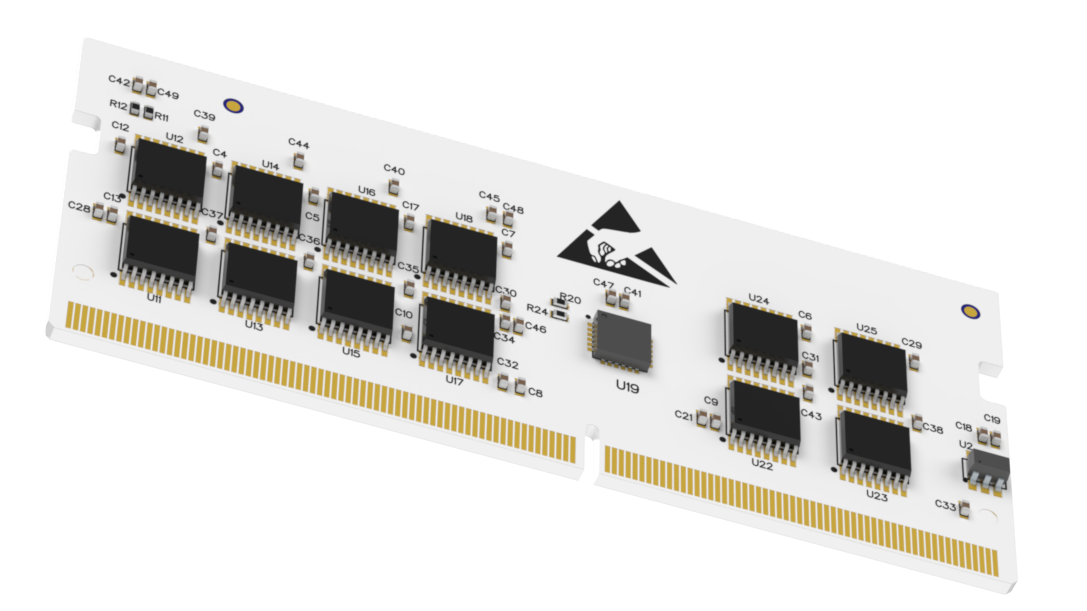

MPIO-96 SPI Module

A high-density I/O card with 96 bidirectional channels — each one an analog input, analog output, or pseudo-digital I/O on demand.

MPIO-96 SPI Module
Learn more

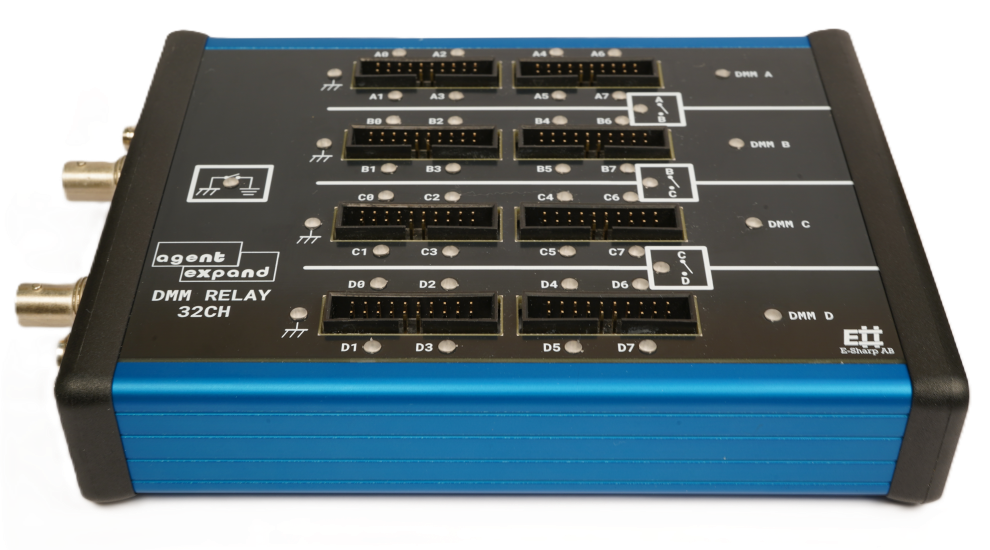

Accordion Expand DMM Relay

Versatile 32-channel DMM relay with configurable layouts, galvanic isolation, and trigger ports for precise, automated signal switching.

Accordion Expand DMM Relay
Learn more
